Headsets

Why We Make This: The simple answer is that many contemporary bicycle frame designs call for the headset bearings to ride inside the frame’s headtube. After decades of making press-in bearing headsets, we needed to make headsets that worked in these newer frames. From the beginning we understood that integrated headsets posed a unique challenge in that the bearings are not pressed into a cup and sit loosely in the frame. When bearings are not pressed securely into a cup they shift and move, rapidly losing preload. As preload drops, the bearings are more susceptible to creaking, damage, and failure. That’s a problem we know how to solve. Why You Want It: Enter, our patented GripLock™ bearing cap. The GripLock™ preloads the headset independently of clamping onto the steerer, so it retains preload far better than the competition and is impervious to the ill effects of load spikes from large hits and heavy braking. This means smoother steering, no more creaking, and a longer lasting headset. Our GripLock™ design also takes the guesswork out of preloading a headset, because the bearing preload force is independent of the clamping force. Our headsets can be preloaded to a torque spec. Compatible with Open, 3T, All City, Low, Cinelli, Lynskey, and more. - Engineered, manufactured and assembled in Portland, Oregon USA - King Lifetime Warranty - Legendary made-in-house bearings - Patented GripLock® retention design for dependable headset adjustment (US Patent 8662517) - 42mm 45x45 upper bearing for 2.8-3.0mm bearing ream depth. - 52mm 45x45 lower bearing - Compatible with our included baseplate and 45 degree integrated crown races

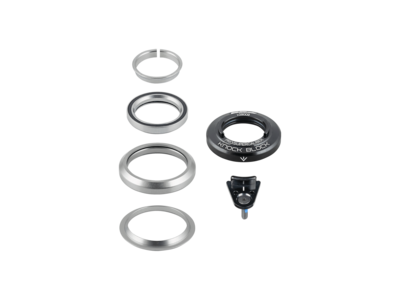

Service and replacement parts specifically for Trek Knock Block technology. Genuine replacement parts Get your bike back on the trail with the headset parts you need. - Trek proprietary headset components compatible with Trek Knock Block models - 58-degree headset fits all 2017-2020 Knock Block equipped models - Includes crown race, bearings, top cover, frame chip & fastener - Frame chip has display tabs to connect Bosch Kiox Mount sold separately - Must be paired with Knock Block stem and Knock Block spacers - Knock Block headset spacers not included

• Aluminum • Semi-sealed mechanism • 1 1/8 inch • S.H.I.S.: EC34/28.6, EC34/30

Wolf Tooth Premium headsets feature high-end bearings made by Enduro. They are engineered to use the largest possible ball size and are filled with high-pressure waterproof lubricant. A pair of dual-lip seals ride in micro-grooves to keep out water and debris. - Stainless Steel Bearings provide unparalleled corrosion resistance - Highly recommended if your headset will be exposed to wet conditions or sweat - Lifetime warranty - Lower Bearing, includes race

Wolf Tooth headsets are machined in the USA with aircraft-grade 6061 aluminum. Our Performance Headset is built to include a black oxide-coated chromium steel bearing and a one-year warranty. Our headsets stand above the rest with three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset. They are designed to be lightweight, strong, and durable. Available in a variety of colors. These EC headsets are for frames with external bearing cups, which places the bearing outside of the frame with these headsets. Lower assembly features: - Custom molded dual-lip seal on the crown race to protect the lower bearing in the toughest conditions. - 12.25mm stack. - Service and additional parts available.

There is more to our carbon headsets than their striking good looks. From top to bottom, Box One™ Carbon Headsets was designed to perform. Each unit features a custom CNC-machined aluminum compression cap in the shape of the Box logo with cut-outs to reduce weight. At the center of the compression cap is an anodized aluminum bolt that threads into a gold anodized aluminum expander plug. This expander eliminates the need for a star nut and works with all 1-1/8-inch steerer tubes—even carbon fiber steerer tubes. The bearing cover is crafted from carbon fiber, which not only adds style but helps shave weight. At the heart of the headset are two super-smooth, titanium-nitride coated, sealed, 45×45 bearings. The titanium coating results in a low friction coefficient, increased corrosion resistance, and smoother rolling bearings. A split crown race makes installation and removal from forks super easy. FEATURES - Durable Titanium-Nitride Coated Sealed Bearings - Lightweight Non-Structural Carbon Components - Reusable Expander Wedge SPECIFICATIONS - Bearing Angle: 45° x 45° - Compression Cap: CNC-Machined - Bearing Cover: Carbon Fiber - Expansion Plug: Aluminum - Compression Cap: Aluminum - Finish: TiN Bearings - IS 42/28.6 - IS 42/28.6 - Weight 94 g / 3.3 oz

Why We Make This Headtube and fork steerer standards have proliferated in recent years, but for a long, long time these variables were more fixed, so we made thousands upon thousands of NoThreadsets™ to serve bikes with unthreaded fork steerers. We made them in a variety of diameters, and everyone was happy in the land. We still make it, because it’s still a great headset for all those bikes that are still rolling through the world with a headset that will never die. Why You Want It For decades our NoThreadSet™ set the standard for quality headset function delivering precision performance to numerous world champions, grand tour winners, and aspiring riders around the world. Every Chris King headset is built with our heat-treated bearings, and surgical-grade steel races machined simultaneously to ensure they are perfectly matched. As Chris King bearing tracks age and burnish, they actually get smoother, and all headsets are fully serviceable for years upon years of demanding riding. - Engineered, manufactured and assembled in Portland, Oregon USA - King Lifetime Warranty - Legendary made-in-house bearings - Patented GripLock® retention design for dependable headset adjustment (US Patent 8662517) (1-1/8” only) - Available in 8 beautifully anodized colors in both bold and sotto voce marking options - Responsibly lightweight - Options to fit 1” and 1-1/8” straight steerer tubes

The GeoShift Performance Angle Headset allows you to adjust the geometry of your bike by changing the head tube angle, available in 1 or 2 degree options. This unique design lets the bearings sit at an angle to align with the steerer tube, preventing creaking noises commonly found with angle headsets that feature a spherical design. Reduce the head tube angle to make for slacker geometry and added stability on fast descents, or increase the angle using the opposite orientation of the headset, to make for steeper geometry and quicker steering with maximum front wheel traction. - Enduro black oxide coated chromium steel bearing included on both the upper and lower - Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a compression plug (sold separately) - Machined in the USA with lightweight, strong, durable aircraft-grade 6061 aluminum - Includes: Upper and lower cups, bearings, crown race, star nut, shims, stem cap with 5mm integrated spacer and bolt - 2 Degree Adjustment - Short version is designed for headtube lengths between 90 - 115 mm

Headset bearings for Wolf Tooth headsets. - Replacement bearings

The Ritchey Logic Threadless headset features a smaller upper bearing to save weight, while the oversize lower bearing is designed to handle loads. Deep bearing cups promise solid insertion. - Bearing: Retainer ball bearing - Material: Steel/Plastic - Stack Height: 28.3mm

Super-smooth steering, quality materials, cutting-edge design and serious durability are all hallmarks of Cane Creek headsets. The 40 Series has light, tough, and beautiful machined 6061 T6-aluminum cups that are internally relieved for even more gram shaving. You also get Cane Creek's corrosion-resistant black-oxide sealed bearings and quality seals throughout to keep the grease in and the dirt out, including Cane Creek's Clip Seal that completely seals the top assembly.

Chris King led the threadless headset revolution with their NoThreadSet. This iconic, incredibly durable piece of equipment embodies the limitless potential found in simple, high-quality design. Equally appropriate on your road or mountain bike, the NoThreadSet has been ridden to World Cup titles on the trail and to victory at the Tour de France. Featuring precision-machined aluminum cups, King's own in-house stainless steel bearings, a stainless steel base plate, and all ten Chris King colors, each headset is a statement piece that will likely outlast your bike! This model fits bikes with a non-tapered 1-inch headtube and threadless steerer tube.

Super-smooth steering, quality materials, cutting-edge design and serious durability are all hallmarks of Cane Creek's 110 headsets. • Technical Description: EC44/40/H12/x • Bottom Type: EC - External Cup • Bottom Head Tube Inside Dia.: 44.00mm • Crown Race Seat Dia.: 39.76mm • Crown Race Type: Aluminum, Dual-Seal • Bottom Stack Height: 12mm • Bottom Bearing Type: Top-quality, sealed stainless steel bearings • Material: 7075 aluminum • Weight: 61.02g

- Carbon fiber top caps, bolt and steel star nut - Size: 1-1/8" - Color: Black - Weight: 21g

- Steel cups - Steel retainer bearings - Available in chrome or black - S.H.I.S.: EC32/25.4-24tpi|EC32/27 - Steerer Dia: 25.4mm - Cup Dia: 32.5mm

- 3-piece expander design provides a secure fit within carbon steerer tubes - 22-25mm range of expansion - 50mm height reinforces carbon steerer tube beneath the stem - New design evenly distributes headset compression forces - Lightweight AL6061 alloy construction - Stainless steel bolt

The Origin8 Twistr Integrated Headset features highly polished sealed angular contact premium bearings ensure smooth operation. Its CNC-machined AL6061 top cover is sealed to keep moisture and grit away from the bearings, while the CNC-machined AL7075 crown race protects the lower bearings and fork. - AL6061 top cap - Forged stainless steel bolt - Includes star nut

Origin8's Twistr Semi-Integrated & External Headset features highly polished sealed angular contact premium bearings ensure smooth operation. Its CNC-machined AL6061 top cover is sealed to keep moisture and grit away from the bearings, while the CNC-machined AL7075 crown race protects the lower bearings and fork. - AL6061 top cap - Forged stainless steel bolt - Includes star nut

Origin8's Twistr Semi-Integrated Headset features highly polished sealed angular contact premium bearings ensure smooth operation. Its CNC-machined AL6061 top cover is sealed to keep moisture and grit away from the bearings, and the CNC-machined AL7075 crown race protects the lower bearings and fork. - AL6061 top cap - Forged stainless steel bolt - Includes star nut

The Ritchey Logic Threadless headset features a smaller upper bearing to save weight, while the lightweight, precision-machined aluminum cups are deep for solid insertion. - Bearing: Semi cartridge - Material: Steel - Stack Height: 30.2mm

This is the Integrated Bottom Bearing for the Cane Creek 110 Series headset. Please contact us if you have any questions about which parts are correct for your headset.

Origin-8's Pro Fit Threadless Headset is made of light and durable aluminum and boasts smooth and long-lasting sealed cartridge bearings. It also sports nice laser-etched logos.

• Steel • Retainer ball bearings, includes top cap and star nut • 1 inch • S.H.I.S.: EC30/25.4, EC30/26

Wolf Tooth headsets are machined here in our Minnesota shop with aircraft-grade 6061 aluminum. They are designed to be lightweight, strong, and durable. Our headsets have three levels of industry-leading custom sealing to protect bearings from the elements and prolong the life of the headset. Available in a variety of colors. These ZS headsets are for frames with internal bearing cups that are pressed into the frame. Premium Headsets with Enduro stainless steel bearings have a lifetime warranty. Upper assembly features: - Ultralight stem cap with integrated spacer plus an aluminum bolt and a star nut. - 6, 15, and 25 mm stack height top cover options (6mm cover = 6mm total stack, 15mm cover = 15 total stack, 25mm cover = 25mm total stack). - O-ring seal prevents water intrusion around the steerer tube. - Custom-molded upper lip seal provides additional protection for the upper bearing.

Crown races for Wolf Tooth headsets. - For Wolf Tooth headsets

Backed by a 110-year warranty and constructed in Fletcher, NC, the 110-Series headset is designed with no compromises in quality, durability, or finish quality. Zero stack uppers press into head tube with very little stack height. Lowers are either zero stack or external cup. - Sealed stainless steel bearings - Carbon-friendy compression ring captured in top cover, keeping shims in place - 7075 T-6 aluminum cups machined in Fletcher, NC - Aluminum dual seal crown race protects lower bearing - Interlok spacer compatible - 110 year warranty

The 40-Series is the workhorse of Cane Creek's headset line-up. Representing the balance of performance, durability and value, the series incorporates all the features necessary for a robust, lightweight, long-lasting headset. Integrated bearings fit directly into compatible head tubes without the need of a bearing press. - Sealed black oxide bearings - Carbon-friendy compression ring captured in top cover, keeping shims in place - Steel crown race with integrated seals - Interlok spacer compatible - Uses 36/45 degree crown race and compression ring - Compatible with tapered 1-1/8" to 1-1/2" steerer tubes, or straight 1-1/8" steerers with a conversion crown race (sold separately)

The 40-Series is the workhorse of Cane Creek's headset line-up. Representing the balance of performance, durability and value, the series incorporates all the features necessary for a robust, lightweight, long-lasting headset. Zero stack uppers press into head tube with very little stack height. Lowers are either zero stack or external cup. - Sealed black oxide bearings - Carbon-friendy compression ring captured in top cover, keeping shims in place - Steel crown race with integrated seals - Interlok spacer compatible - Compatible with tapered 1-1/8" to 1-1/2" steerer tubes, or straight 1-1/8" steerers with a conversion crown race (sold separately)

Wolf Tooth Performance Headsets are machined out of aircraft grade aluminum and assembled with Black Oxide Cartridge Bearings, balancing quality and price. - Black Oxide Bearings are made from chromium steel for high load capacity and durability - Black oxide coating reduces corrosion

Why We Make This Contemporary bicycle frame designs are incorporating larger diameter headtubes and forks with tapered-steerers to improve the bike’s front end stiffness, and as a result handling accuracy. This move has made particular sense for off-road bikes. We evolved the form and function of our legendary NoThreadset to address the variety of tapered steerers and headtubes on the market today. Why You Want It Every Chris King headset is built with our heat-treated bearings, and surgical-grade steel races machined simultaneously to ensure they are perfectly matched. As Chris King bearing tracks age and burnish, they actually get smoother, and all headsets are fully serviceable for years upon years of demanding riding. The Chris King InSet™ 7 combines seamless design and legendary quality in a 44mm headset with an external lower cup that is a precision headset option for your 1.5” tapered steerer fork. Our InSet™ 7 is equipped with our exclusive built-in-house bearings and our patented GripLock® system for precise fit and function. Engineered, manufactured and assembled in Portland, Oregon USA King Lifetime Warranty Legendary made-in-house bearings Patented GripLock® retention design for dependable headset adjustment (US Patent 8662517) Responsibly lightweight Designed specifically for a 44mm straight headtube and a 1-1/8” to 1.5” tapered steerer tube
